Patient Transport Ambulances · TANZANIA PROJECT CONFIGURATION

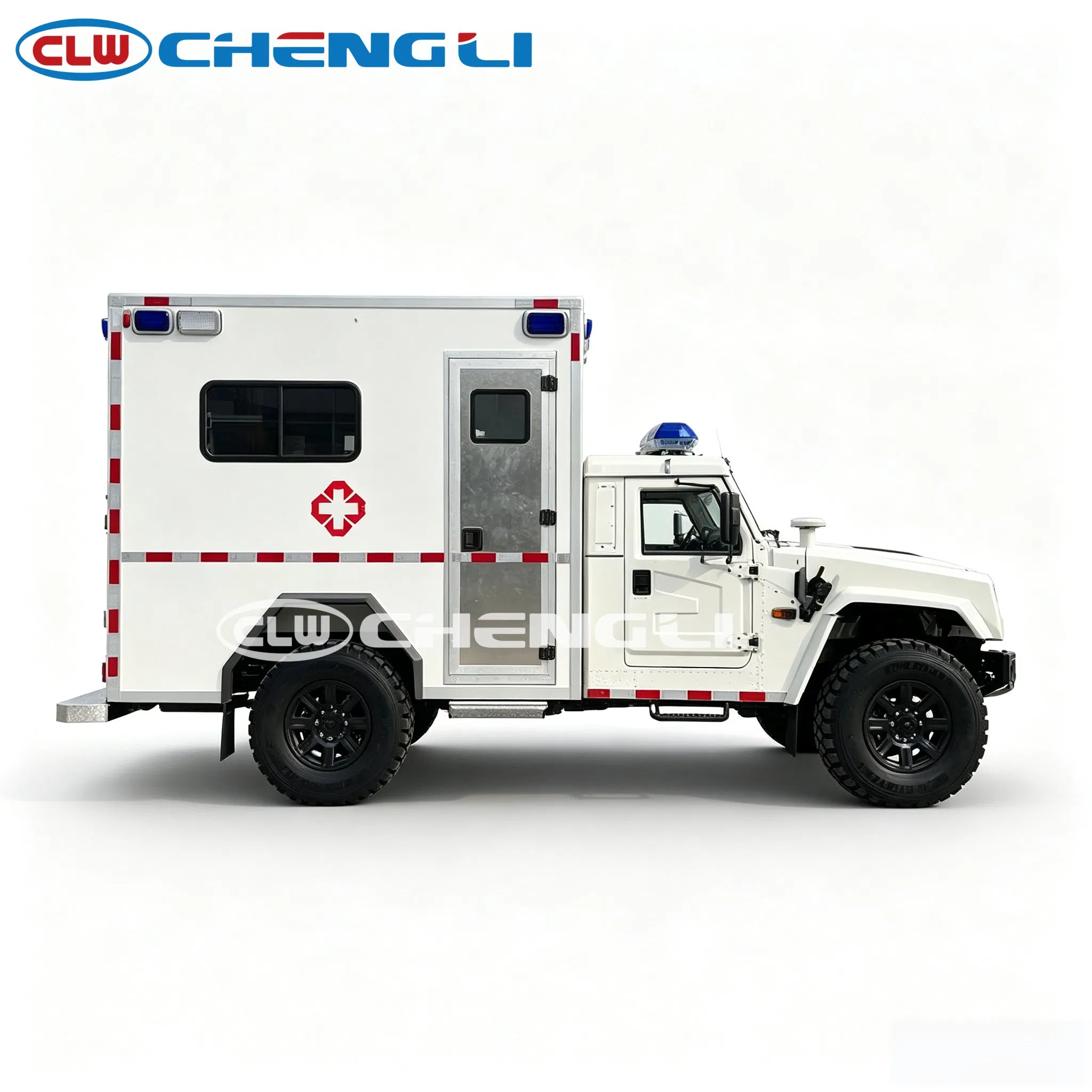

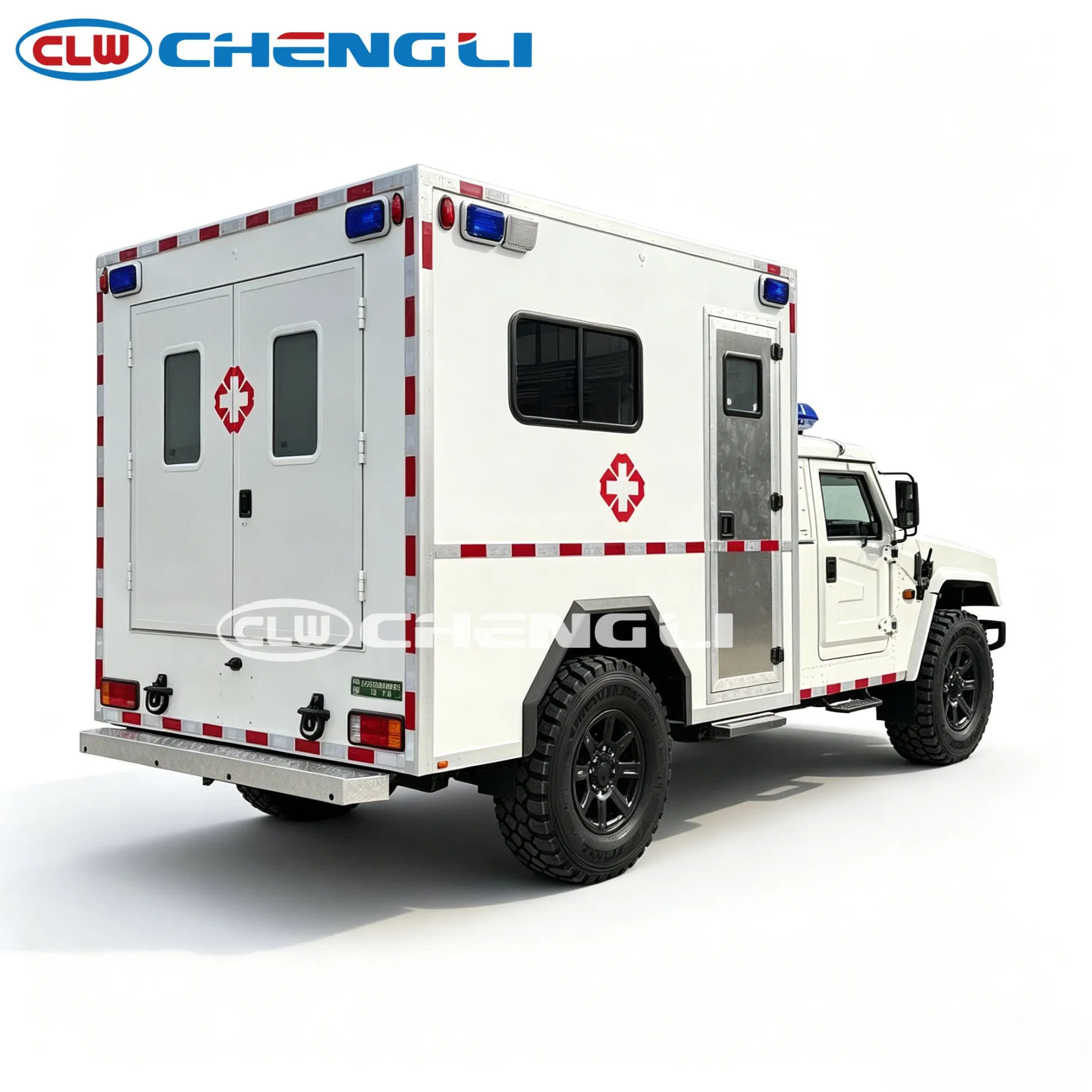

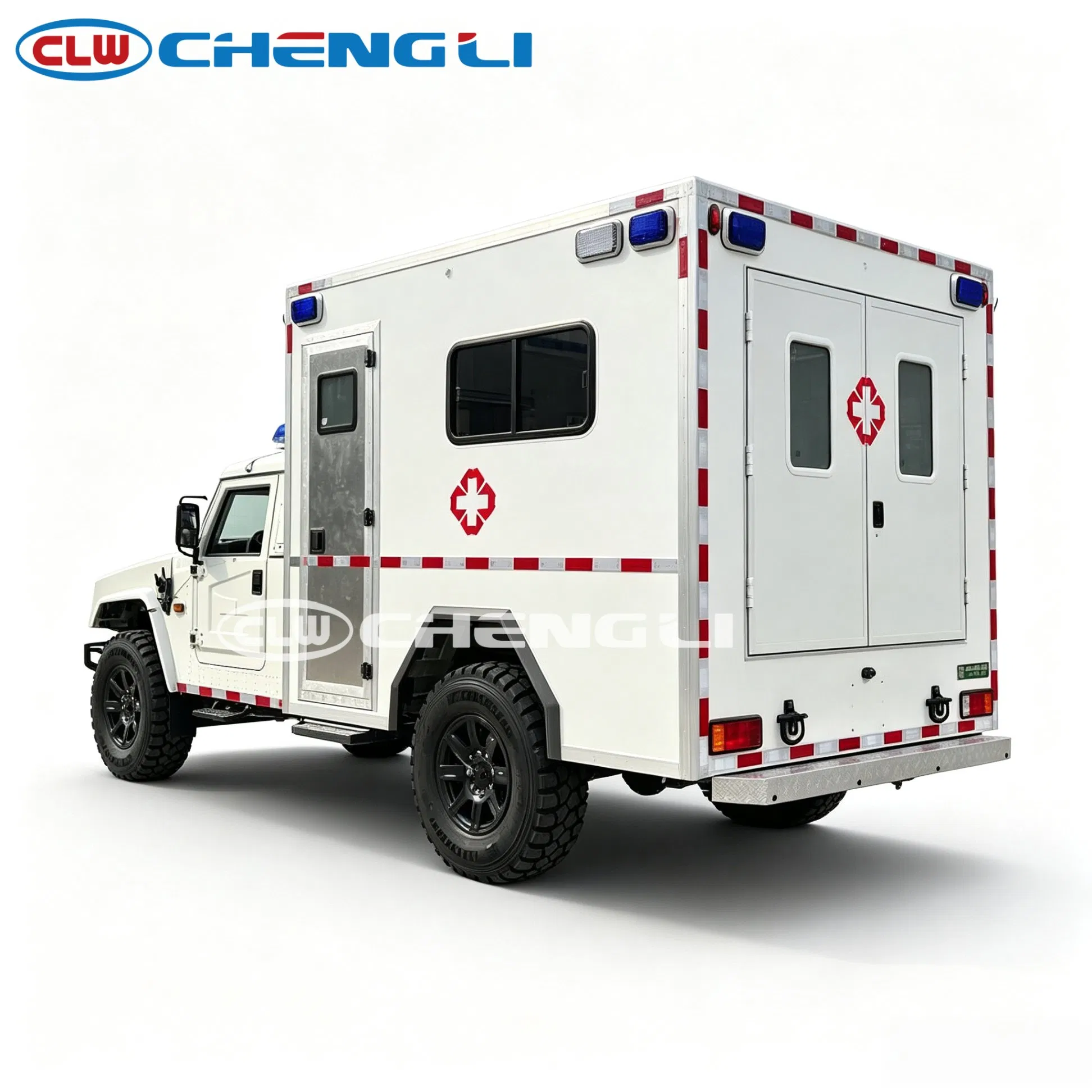

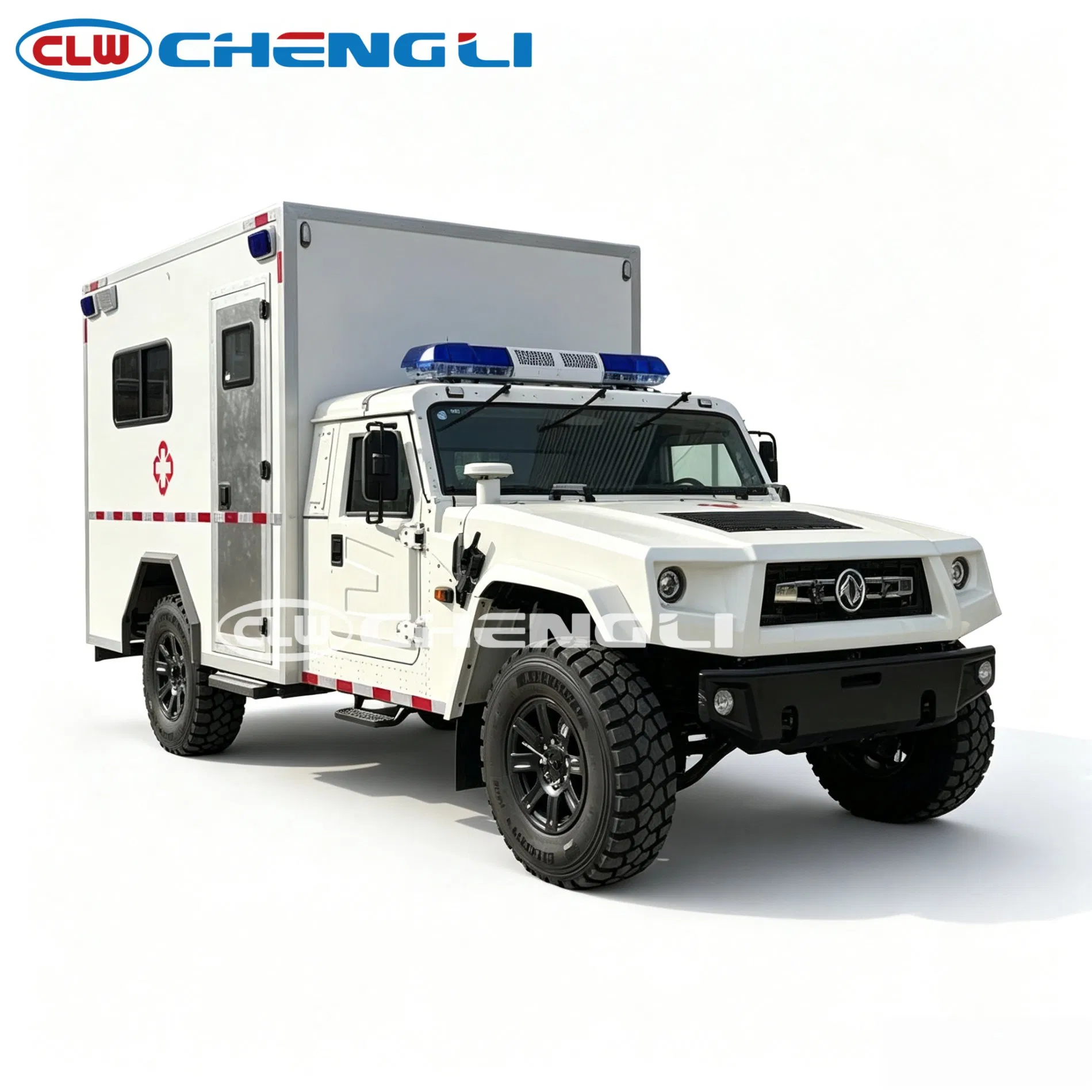

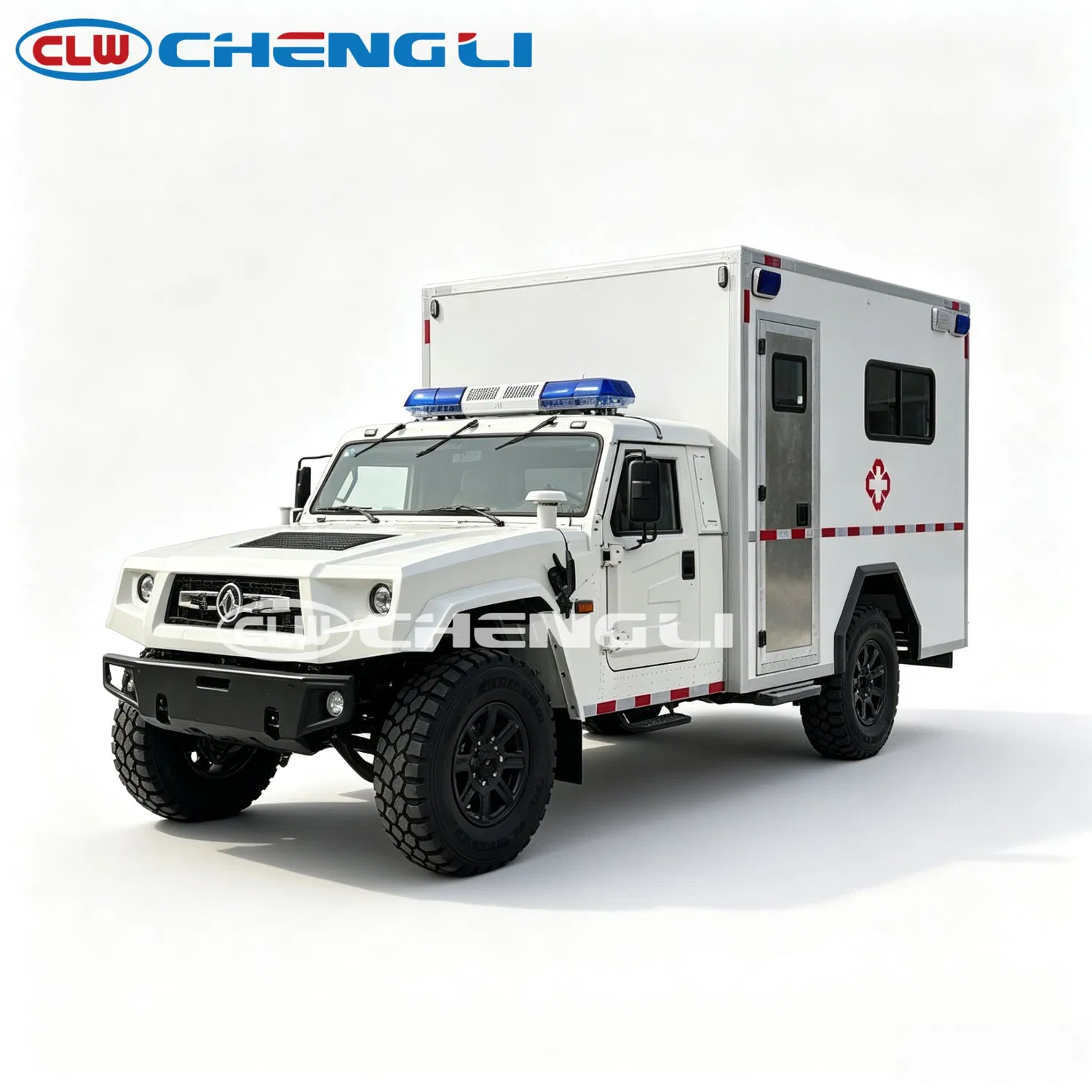

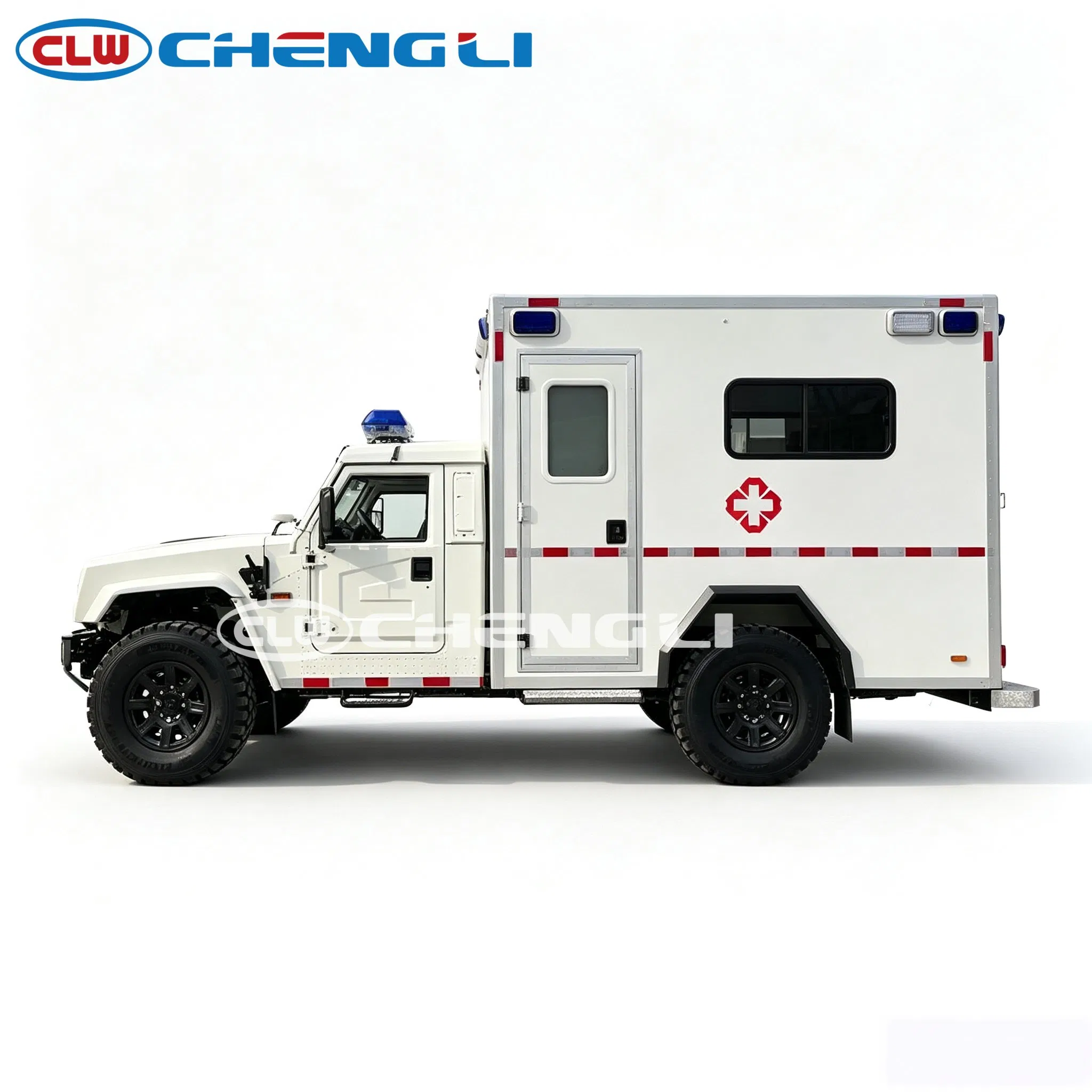

Dongfeng Mengshi 4×4 Patient Transport Ambulance
A 6-tonne Dongfeng four-wheel-drive patient-transport ambulance for disaster relief and difficult access routes.
Core capabilities in operation
Translate vehicle and medical-cabin data into a real project decision. Final performance depends on route, patient-care role, installed equipment and the signed technical schedule.
| Parameter | Procurement meaning | Confirm before order | What changes the result |
|---|---|---|---|
| 4×4 | Supports the source-stated patient-transport mission | Approve the final interior layout and equipment matrix before production | Patient acuity, route, crew, payload and transfer duration |
| Source record states an auto-loading stretcher with securing device, oxygen cylinders and a medical equipment cabinet. | Provides a project-specific ambulance conversion | Freeze every stretcher, oxygen, power, restraint and storage item in the contract | Clinical protocol and destination requirements |
Technical specifications
| Manufacturer | Chengli Special Automobile Co., Ltd. |
|---|---|
| Vehicle model | Dongfeng 4×4 Off-Road Ambulance |
| Chassis | Dongfeng Mengshi platform; exact chassis code to confirm |
| Drive type | 4×4 |
| Fuel / energy | Diesel |
| Transmission | Manual |
| Engine power | 220 hp Cummins (source description) |
| Wheelbase | 3800 mm |
| Overall dimensions | 5950 × 2400 × 2870 mm |
| Gross vehicle weight | 6000 kg (source title/specification) |
| Steering side | Order-specific; source record does not confirm right-hand drive |
| Medical role | Contract-defined; source marketing class is not an acceptance standard |
| Stretcher capacity | One main stretcher stated; exact model, load rating and lock to confirm |
Published base data supports selection only. The signed chassis, conversion and medical-equipment schedules take precedence.
Medical cabin specifications
| Cleanability | Confirm lining, floor, joints and cleaning compatibility |
|---|---|
| Equipment | Source record states an auto-loading stretcher with securing device, oxygen cylinders and a medical equipment cabinet. |
| Layout | Order-specific; confirm scaled drawing and clear working space |
Oxygen system
| Confirmation | Confirm cylinder size, quantity, mounts, regulator, outlets and endurance |
|---|---|
| Scope | Oxygen provision is stated in the source record |
Electrical system
| Confirmation | Confirm battery, inverter, shore power, sockets, protection and load calculation |
|---|---|
| Scope | Auxiliary power is order-specific unless expressly stated above |
Safety and restraint configuration
| Inspection | Verify warning system, emergency exits, storage retention and cabin finish |
|---|---|
| Restraints | Confirm stretcher lock, patient restraints and belted attendant seats |
| Rhd | RHD not confirmed in the source record |
Standard equipment
- Source-stated medical scope: Source record states an auto-loading stretcher with securing device, oxygen cylinders and a medical equipment cabinet.
- Base vehicle: Dongfeng; Dongfeng Mengshi platform; exact chassis code to confirm; Diesel; Manual
- Handover basis: Only items listed in the signed technical schedule are included
Configuration options and trade-offs
- Vehicle size and access: Confirm that exterior dimensions and turning needs suit the intended facilities and roads.
- Clinical scope: A broader equipment package increases mass, electrical load, heat and maintenance needs.
Operating fit
Suitable conditions
- Patient evacuation from disaster zones and rough-road districts where conventional 4×2 vans may not reach.
- Projects able to confirm RHD, payload and destination compliance before production
Not recommended for
- Orders that treat the page title as a complete clinical specification
- Use before RHD, medical equipment and destination documentation are contractually confirmed
Procurement positioning
A 6-tonne Dongfeng four-wheel-drive patient-transport ambulance for disaster relief and difficult access routes.
Patient evacuation from disaster zones and rough-road districts where conventional 4×2 vans may not reach.
Verified source data
Model: Dongfeng 4×4 Off-Road Ambulance. Chassis: Dongfeng Mengshi platform; exact chassis code to confirm. Drive: 4×4. Fuel: Diesel. Transmission: Manual. Overall dimensions: 5950 × 2400 × 2870 mm. GVW: 6000 kg (source title/specification). Wheelbase: 3800 mm.
Source record states an auto-loading stretcher with securing device, oxygen cylinders and a medical equipment cabinet.
Before quotation approval
Confirm the exact RHD chassis, patient-compartment drawing, payload, stretcher restraint, oxygen endurance, auxiliary electrical load, included medical devices and Tanzania documentation in the signed technical schedule.
Frequently asked questions
What is confirmed on this page?
The source record confirms the Dongfeng 4×4 Off-Road Ambulance identity and the listed base parameters. The final clinical and destination specification is controlled by the signed technical schedule.
Is right-hand drive confirmed for Tanzania?
No. The source record does not provide documentary RHD confirmation for this listing, so the offered chassis must be verified before order approval.
Verification and procurement support
Vehicle data is mapped from the available product record. Final RHD chassis identity, emissions, patient-compartment layout, medical devices, documents and Tanzania destination requirements must be confirmed in the signed technical schedule.
- Base VehicleModel and listed chassis parameters mapped from the source record
- Clinical ScopeOnly source-stated equipment is summarized; final clinical level remains contract-defined
- IdentitySource product ID, title and category checked
- Images8 unique source-gallery URLs retained
- Source Languageen
