Emergency & ICU Ambulances · TANZANIA PROJECT CONFIGURATION

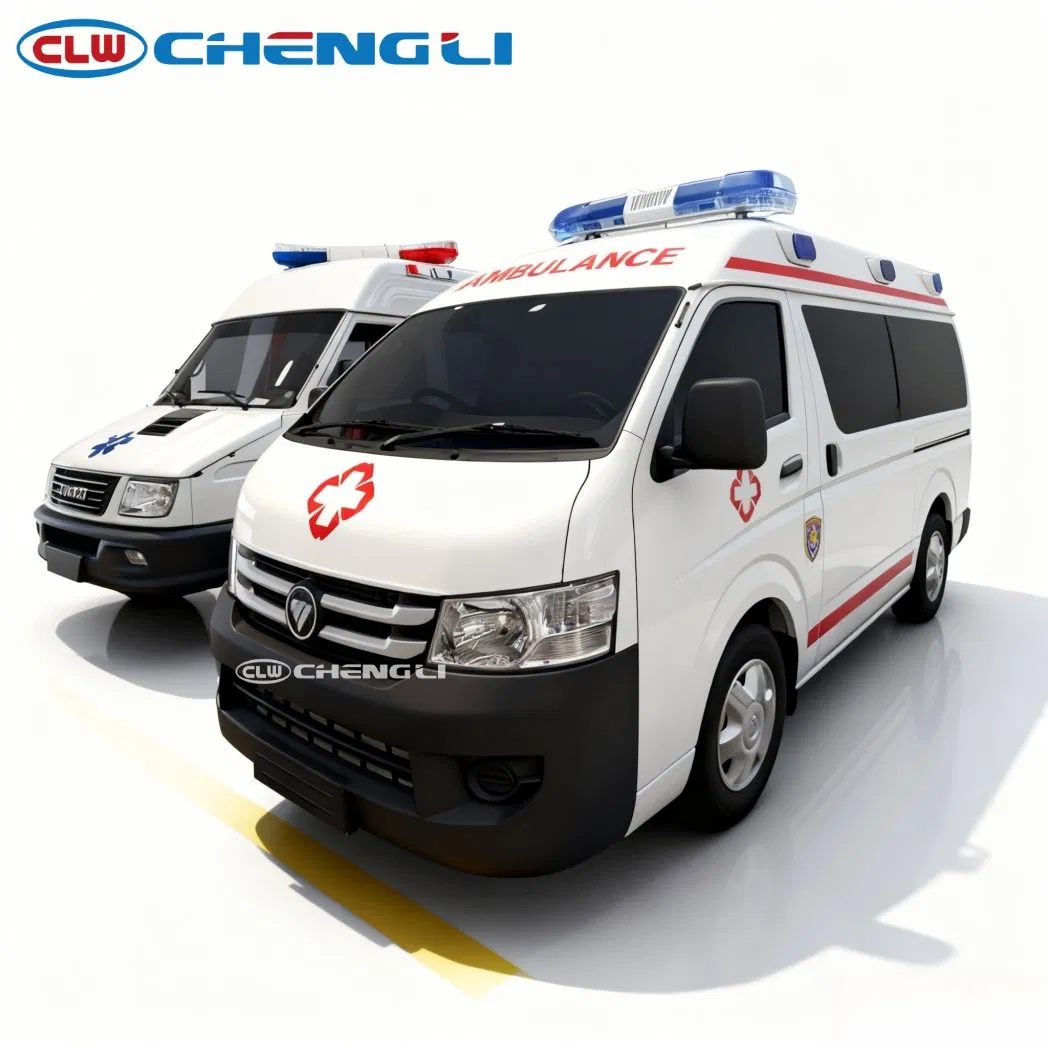

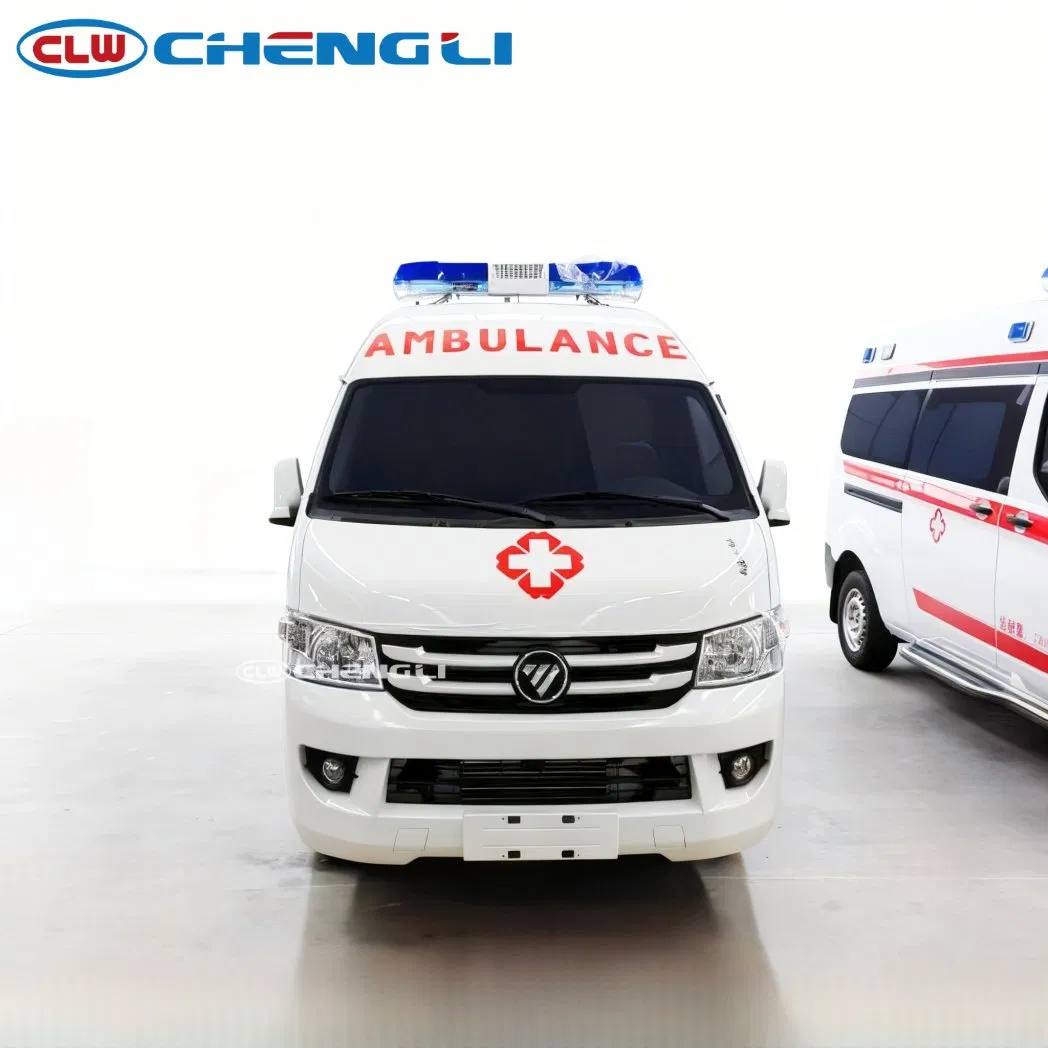

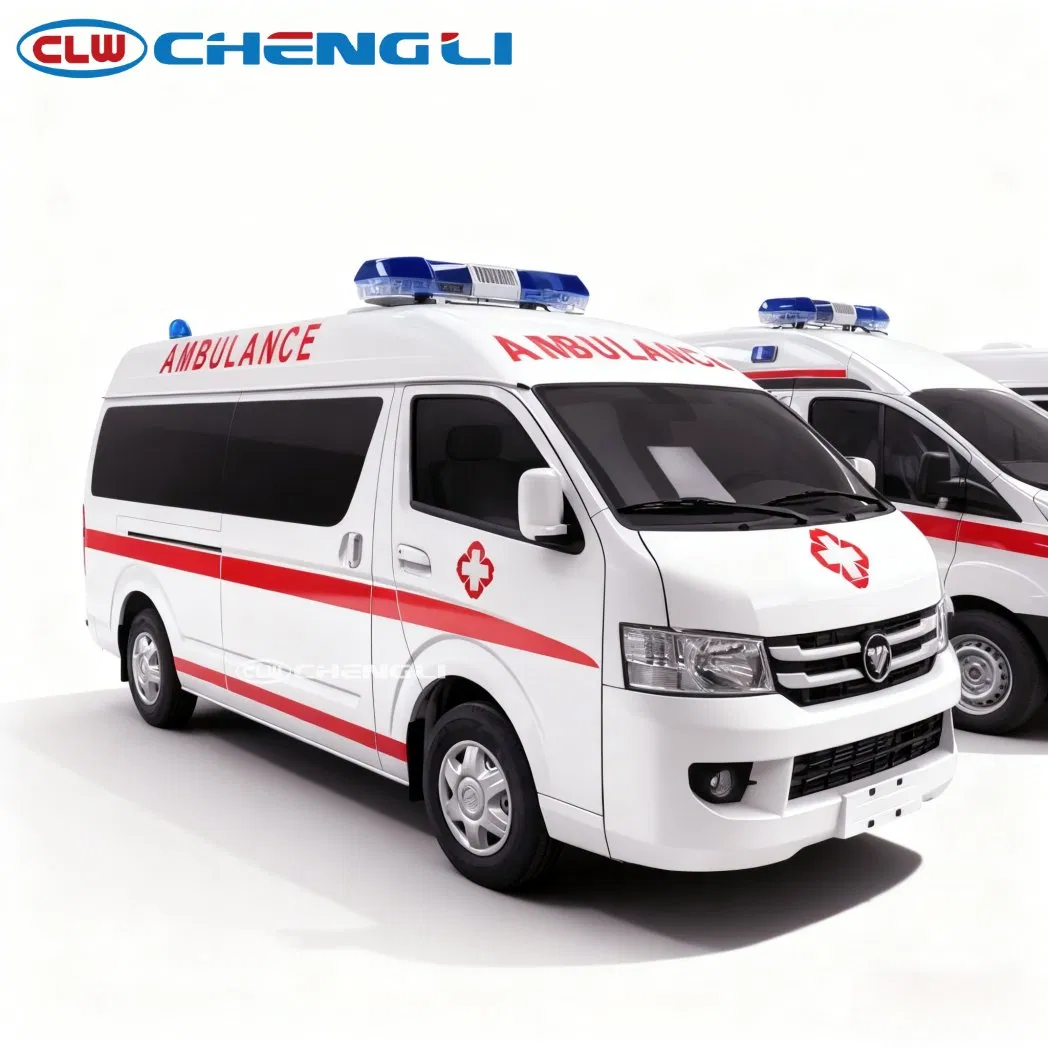

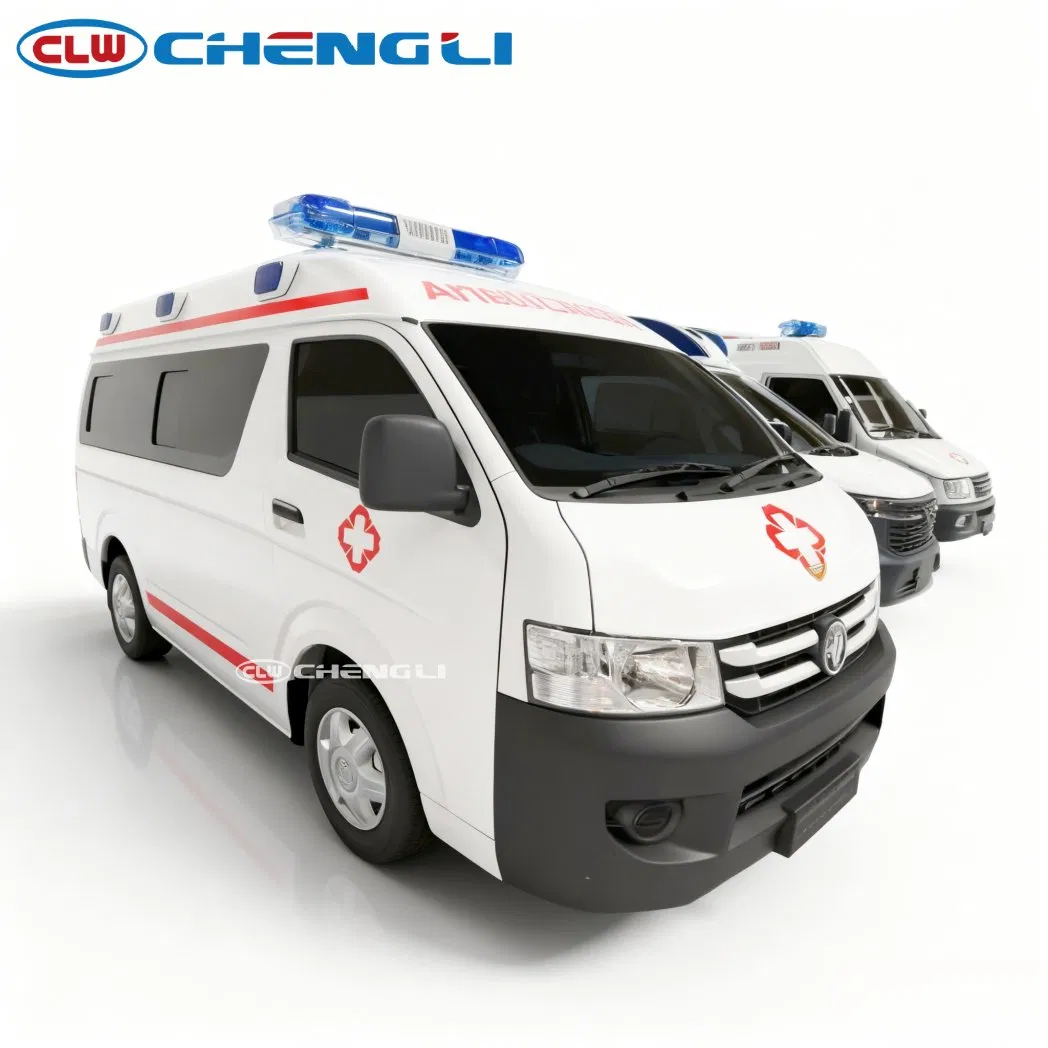

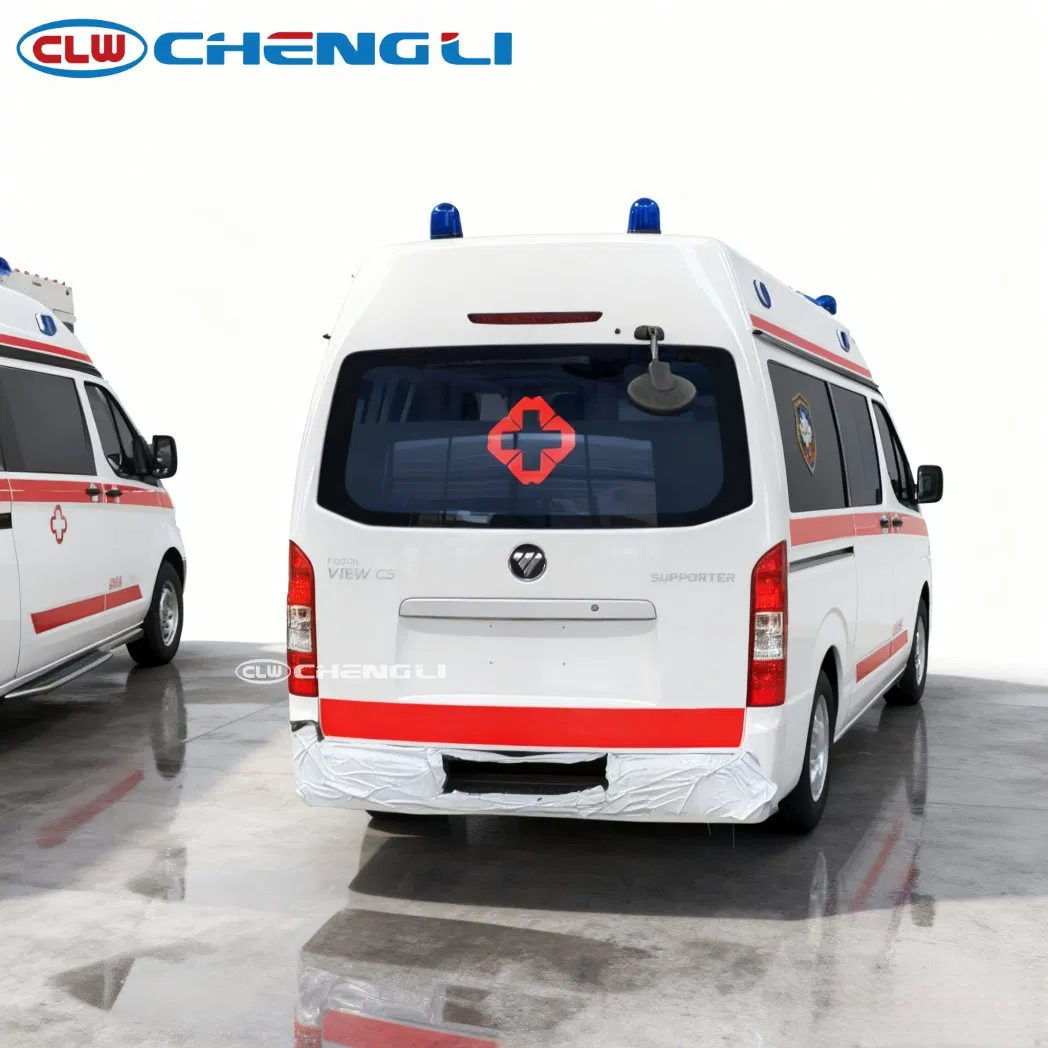

Foton G9 ICU Medical Transfer Ambulance for Tanzania
A long-axis Foton G9 platform for monitored transfer projects where oxygen, power, storage and device responsibility must be defined in detail.
Core capabilities in operation
Translate vehicle and medical-cabin data into a real project decision. Final performance depends on route, patient-care role, installed equipment and the signed technical schedule.
| Parameter | Procurement meaning | Confirm before order | What changes the result |
|---|---|---|---|
| Long-axis Foton G9 platform | Supports a compact monitored-transfer layout when equipment and crew space are controlled. | Complete a scaled interior layout and electrical-load review before approval. | Device footprint, attendant seating, oxygen autonomy, storage and patient access. |
| Contract-defined ICU scope | Can be configured around monitoring, ventilation, suction and infusion support. | Name every device model, quantity, mounting interface, power supply and service responsibility. | Clinical protocol, supplier responsibility, battery autonomy, heat load and maintenance capability. |
Technical specifications
| Manufacturer | Chengli Special Automobile Co., Ltd. |
|---|---|
| Vehicle model | Foton G9 ICU Medical Transfer Ambulance |
| Chassis | Foton Foton BJ6549B1DXA-E2 |
| Drive type | 4×2 |
| Fuel / energy | Gasoline |
| Transmission | Manual |
| Wheelbase | 3110 mm |
| Overall dimensions | 5380 × 1920 × 2480 mm |
| Gross vehicle weight | 3400 kg |
| Steering side | RHD/LHD options stated in source; order-specific RHD confirmation required |
Published base data supports selection only. The signed chassis, conversion and medical-equipment schedules take precedence.
Medical cabin specifications
| Clinical Devices | Monitor, ventilator, suction, infusion support and AED are order-defined |
|---|---|
| Interior | Cleanable surfaces, ventilation, lighting and sharp-edge control to define |
| Patient Area | Stretcher, attendant seating, storage and device positions require an approved layout |
Oxygen system
| Confirmation | Calculate oxygen endurance against transport time, flow rates and reserve policy |
|---|---|
| Scope | Cylinder storage, regulation and outlets are order-defined |
Electrical system
| Confirmation | Approve a documented load calculation and protected circuits before production |
|---|---|
| Scope | Auxiliary battery, inverter, shore power and medical sockets are order-defined |
Safety and restraint configuration
| Restraints | Confirm stretcher lock, patient restraint and belted attendant seats |
|---|---|
| Storage Retention | Define retention for devices, cylinders and cabinets under vehicle movement |
Standard equipment
- Base vehicle: Chassis, steering side, powertrain and emissions as stated in the signed offer
- Ambulance conversion: Patient compartment, lighting, ventilation, storage and warning systems as itemised in the schedule
- Handover basis: Completed-vehicle inspection points, manuals and documents listed in the contract
Optional equipment
- Clinical devices: Monitor, ventilator, suction, AED and infusion equipment selected by project
- Power and communications: Additional battery, inverter, shore power, radio or tracking selected by project
- Climate and route package: Cooling, heating, tyres, recovery and spares selected for the operating environment
Configuration options and trade-offs
- Compact ICU-ready layout: Reduces vehicle size but requires strict control of crew, device and storage space.
- Electrical autonomy: More battery and inverter capacity supports devices but adds mass, heat and maintenance.
- Factory-supplied devices: Simplifies integration only when registration, calibration, warranty and service responsibilities are clear.
Operating fit
Suitable conditions
- Inter-hospital monitored transfer with a defined clinical protocol
- Projects able to specify and service the complete medical-device package
- Urban and peri-urban routes suitable for the selected 4×2 chassis
Not recommended for
- Procurement based only on the label ICU without an itemised schedule
- Missions needing a larger clinical team than the approved layout permits
- Remote off-road routes where a 4×4 platform is operationally necessary
Define the critical-care mission before the vehicle
The Foton G9 can support monitored transfer only when the crew, stretcher, oxygen, device, storage and power requirements fit a reviewed interior layout.
The quotation must separate the base vehicle, ambulance conversion, medical devices and handover documents so the buyer can inspect each responsibility before shipment.
Frequently asked questions
Is the vehicle supplied as BLS or ALS?
The care level is defined by the signed equipment, oxygen, electrical and restraint schedule. The vehicle title alone is not an acceptance standard.
Can Chengli supply right-hand drive for Tanzania?
RHD status must be confirmed for the exact offered chassis and documented in the contract. Products marked as source-stated RHD retain that evidence note on this page.
Which documents are included?
The quotation should list vehicle, conversion, inspection, shipping and medical-device documents separately because the required package depends on the destination and supplied equipment.
Verification and procurement support
Vehicle data is mapped from the available product record. Final RHD chassis identity, emissions, patient-compartment layout, medical devices, documents and Tanzania destination requirements must be confirmed in the signed technical schedule.
- Base VehicleModel, chassis, drive, fuel, dimensions, GVW and wheelbase mapped from the source record
- Clinical ClassificationICU capability is not inferred from the title; it remains contract-defined
- ComplianceTanzania device registration and vehicle conformity remain project-specific
- Images6 unique source-gallery URLs retained; image ownership and order-specific livery remain subject to confirmation
- Steering SideRHD/LHD options are source-stated; the offered RHD chassis must be documented
